Vintage ISA super I/O card Winbond W83757F

For reference. I'm playing with this card from time to time, although the IDE controller is not behaving well (at least with Compact Flash drives)

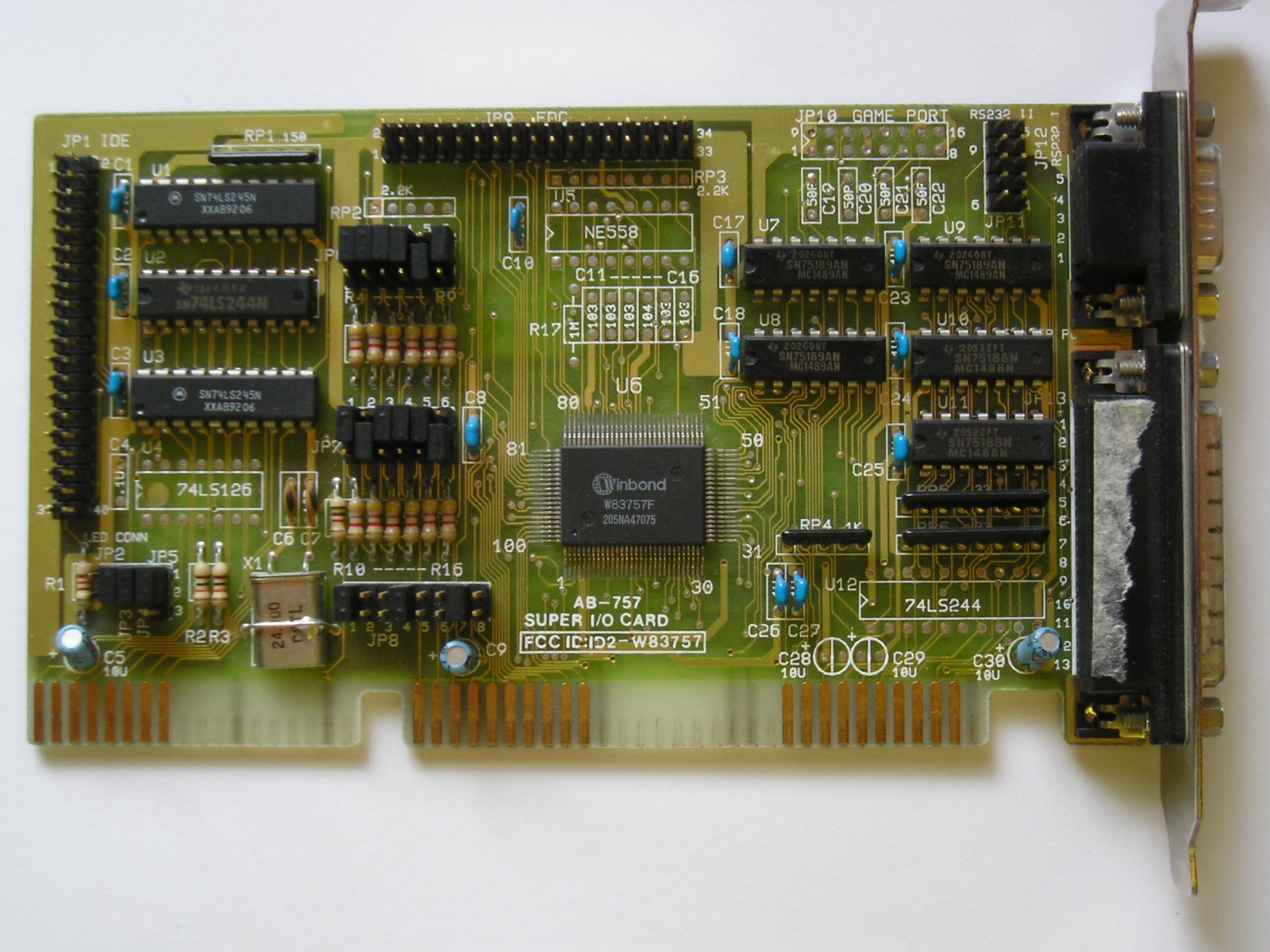

chip: W83757F (205NA47075)
super I/O card FCC ID:ID2-W83757
output ports: COM + LPT
onboard ports: IDE + FDC

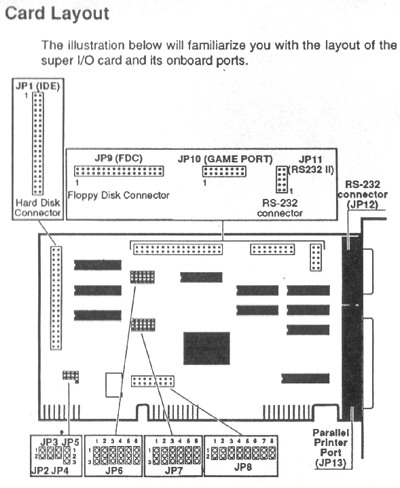

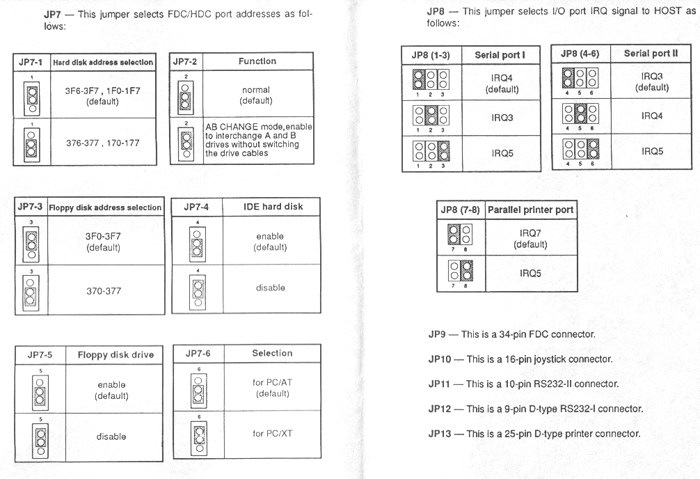

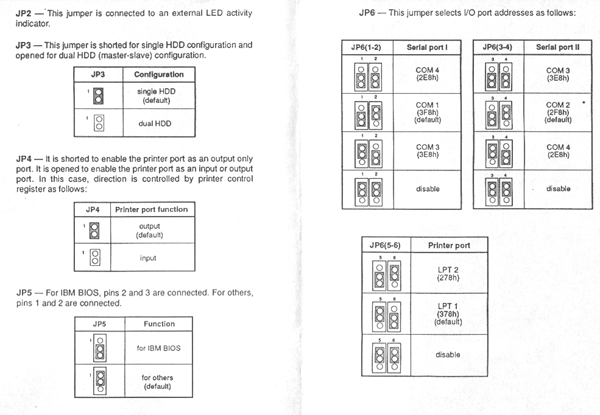

w83757f.jpg pti227-1.gif pti227-2.gif pti227-3.gif
